DynaPrep MDSF Machining Platform
Various modules allow the DynaPrep MDSF to replace multiple machines on site.
Modular Design

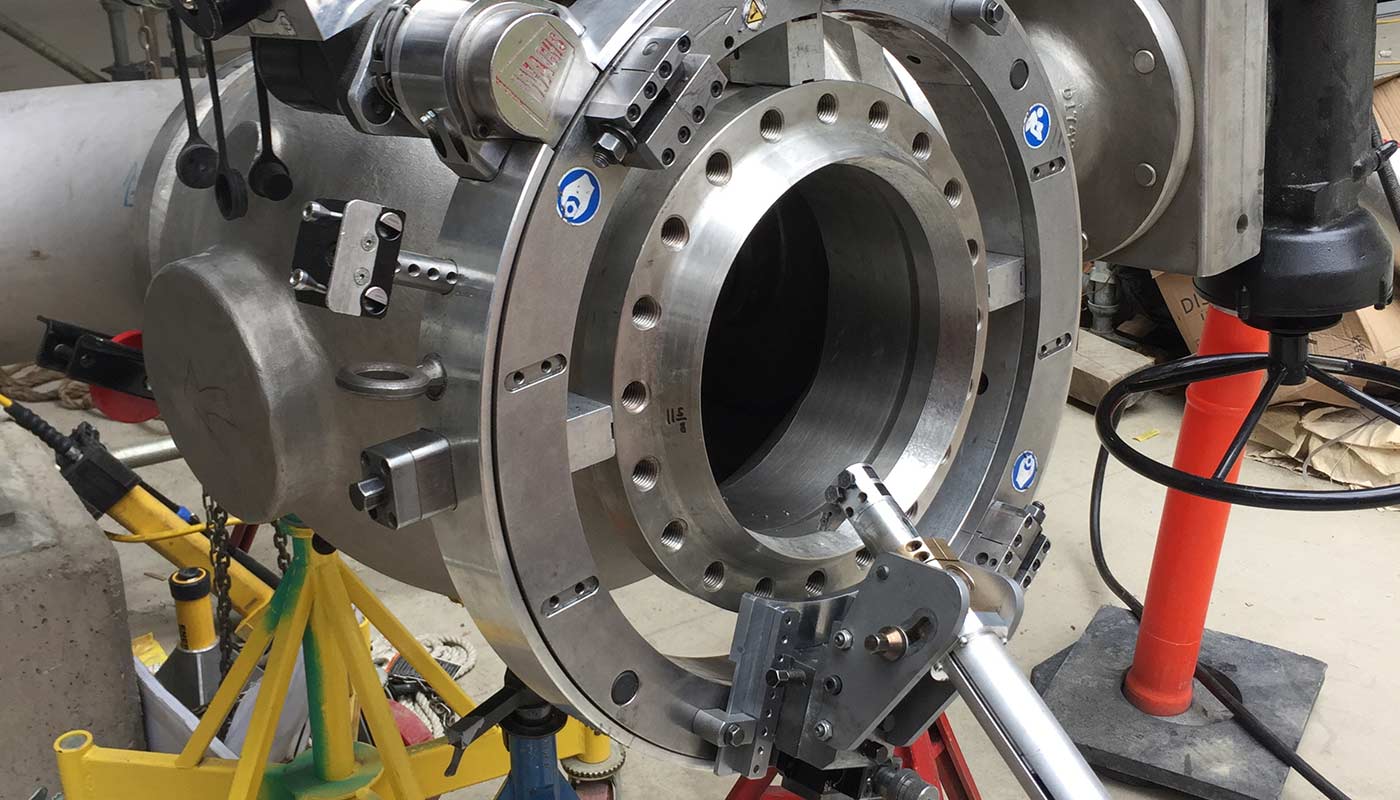

Optional machining modules allow the MDSF to perform multiple tasks including counterboring, flange facing, weld crown removal, casing cutting, milling, and trepanning.
Slide Modules for DynaPrep MDSF
Unrivaled Power

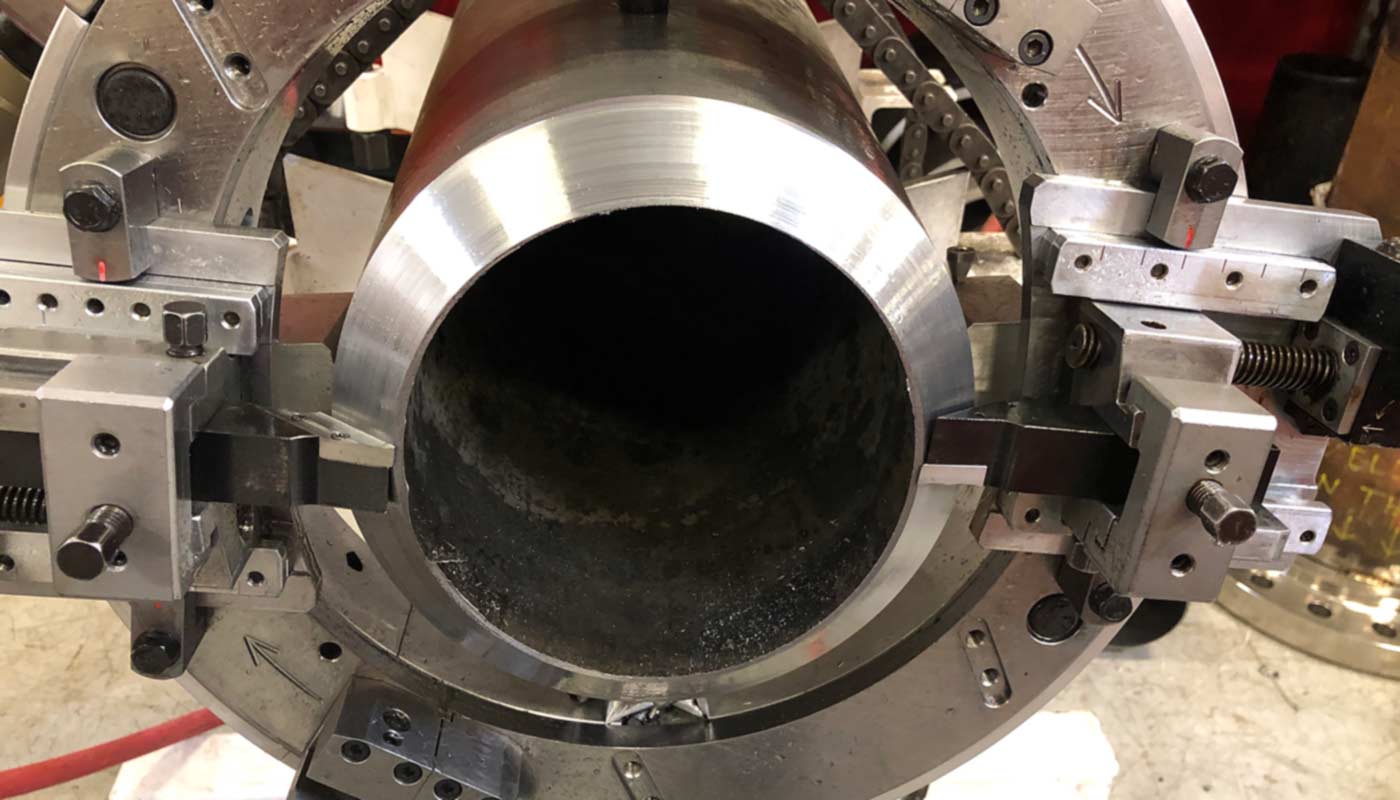

Out of the box, the standard DynaPrep MDSF can form tool up to a 2.5 inch bevel on heavy wall pipe with ease. With heavy wall parting slides, a machine can cut up to a 6-inch wall thickness making it one of the strongest portable machine tools for pipe today.
Features
DynaPrep MDSF Features
- DynaPrep tool slides fit the full 6in–60in range of machines
- Rapid Adjust allows quick tooling advance and retract
- Micro Adjust knob allows precision positioning of tooling
- Mounting legs with engraved indices for quickly squaring the machine to pipe
- Quick mount tool-less drive motor installation
- Only two wrenches needed for setup and operation
- V-Lock ring joining technology allows faster alignment when mounting
- Powerful form tooling up to 2.5in (DN65) wall
- Crash-proof dual trip for tooling advancement
- DuoEdge® insert and holder system delivers lowest cost per cut
Ease of Use
Downtime is one of the biggest costs for today's industries. Exposure in a dangerous environment can present safety risks. The DynaPrep MDSF is designed to get the job done quicker from start to finish. These machines are engineered to ease processes like aligning a ring to a pipe, installing slides, changing tooling, and even connecting power.
Drive Modules for DynaPrep MDSF
Easy as 1. 2. 3.
Ordering a DynaPrep MDSF for your next project is simple. Select the ring size, appropriate kit, power options, and tooling needed for your particular situations. Want to add slides for other operations such as flange facing and counterboring? You can do so at time of your request or later.

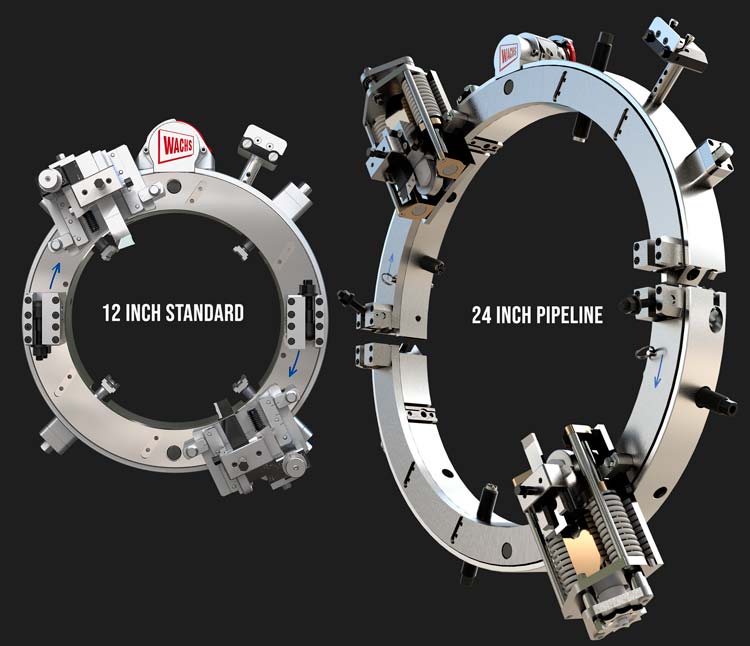

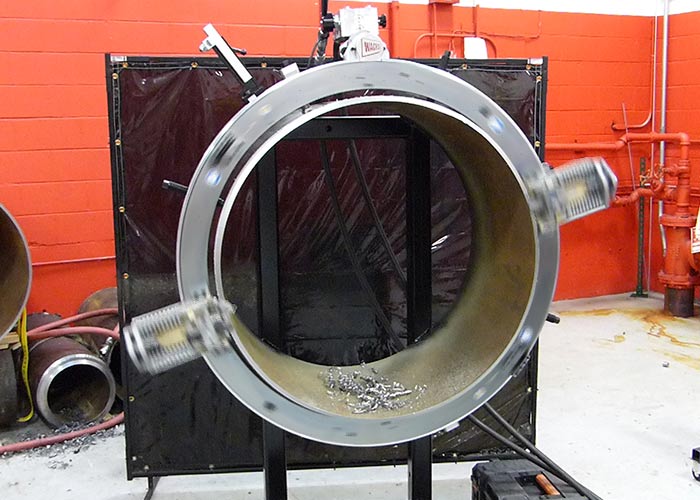

Available in kits with standard slides for normal operations or out-of-round tracking slides for operations such as pipeline construction and repair. The DynaPrep MDSF can be configured with pneumatic, hydraulic, and electric* drives. Remote control is also optional for all drive types.
